Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller

Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller

Nombre De La Marca:	LIGHT-BO
Número De Modelo:	LB2929IB1B
Cuota De Producción:	1000
Precio:	Negotiate
Capacidad De Suministro:	20000pcs/days

Información detallada

Descripción del producto

Información detallada

Place of Origin:

SHENZHEN，CHINA

Certificación:

ISO9001&RoHS

Package Dimensions:

28.6*28.6*9mm

Display Brightness:

Ultra Blue

Forward Voltage:

2.6-3.0v/led

Warranty:

3 years

Face Colour:

black

Application:

indoor/outdoor Advertising

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Descripción del producto

Customized blue 3-digit 7-segment refrigerator controller

Product Descripition

Digit number	3 digit	2digits,3digits, 4digits,5digits,6 digits
Color	Ultra Bright Blue	White, blue,pure green, yellow-green, orange,etc.
Size	28.628.69MM	Other size are supported
Polarity	Common anode	Common Cathode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer's drawing or idea
LOGO printing	Support	Based on customer's drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Product Feature

High-efficiency forward voltage design ensures superior luminous intensity output

Ultra-low power consumption with minimal operating current

Uniform brightness distribution across all display segments

Compact industrial-standard dimensions for easy integration

Maintains outstanding visibility even in high-ambient-light environments

Delivers consistent, stable performance

Extended operational lifespan

Fully compliant with RoHS and REACH environmental standards

Applications:

Elevator and lift position indicators

Floor display panels

Digital signage and moving message boards

Home appliance interfaces

Industrial and commercial information displays

Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.

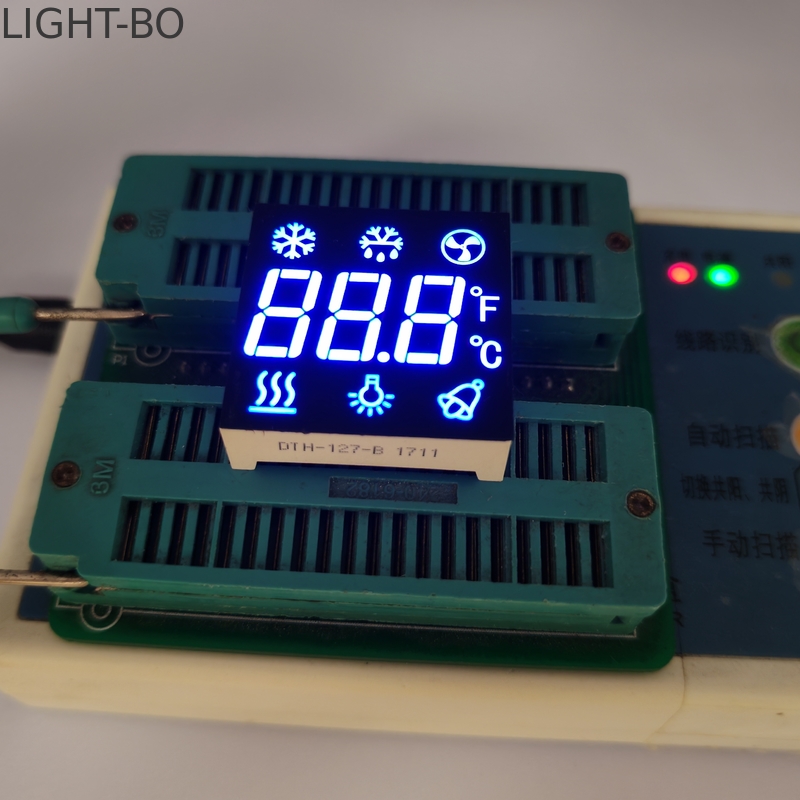

Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller 0

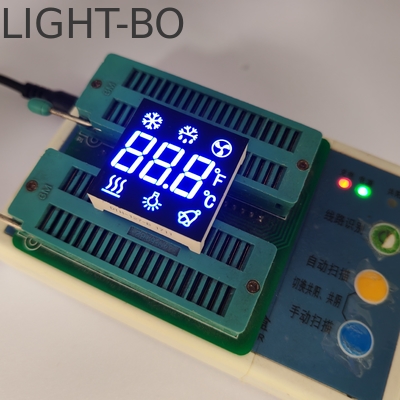

Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller 1

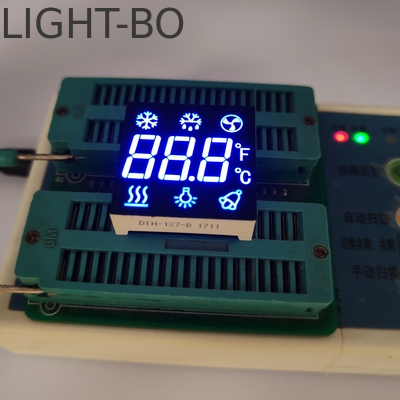

Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller 2

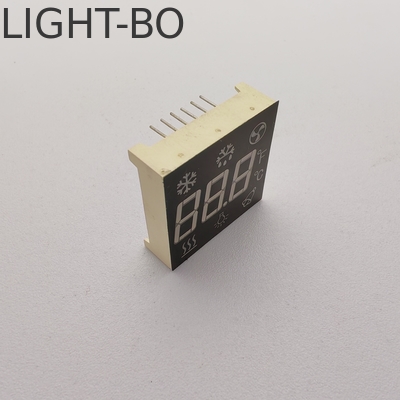

Customized Common Anode 3-Digit 7-Segment LED Display Refrigerator Controller 3
