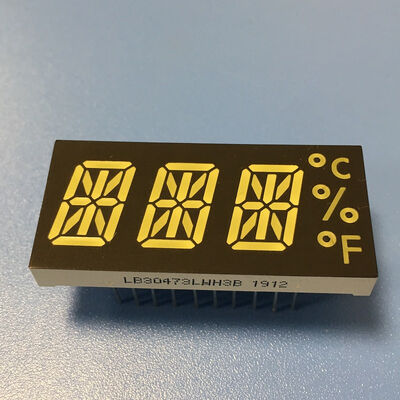

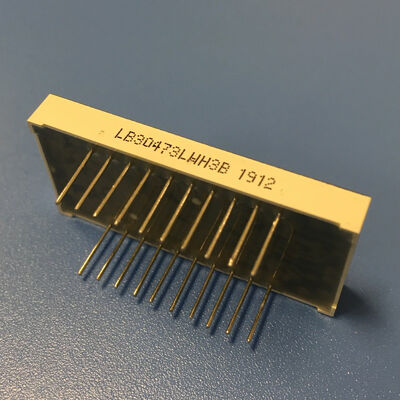

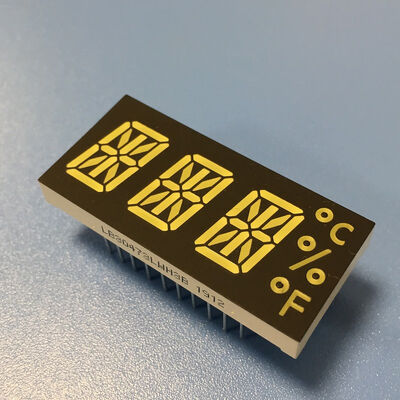

Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature

Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature

Número De Modelo: LB30473LWH3B
Cuota De Producción: 1000
Condiciones De Pago: T/T, Western Union, L/C, D/A, D/P
Capacidad De Suministro: 50000 unidades/día
Información detallada
Lugar de origen:
Porcelana
Uso:
En el interior,en el exterior,en el interior/en el exterior,en la oficina,en el exterior e interior
Color del chip del tubo:
A todo color, rojo, verde, blanco, azul
Dimensión de la pantalla:
Tamaño personalizado, 12,7x 7,6 x 7 mm, 50,4*19,0*8,1 mm, 113 mm*29 mm, 28,8*40,8 mm
Función de visualización:
Gráficos,Animación,Vídeo,número 0-9,temperatura
Píxeles:
10 mm, 7 mm, 25 mm, 8,0, 10,20 mm
Color:
Azul, amarillo, verde, rojo, blanco
Brillo:
Atenuación automática mediante sensor de luz, 4000,7000 cd/m², 5000 ~ 6500 mcd, alto brillo
Garantía:
2 años, 1 año
Nombre del producto:
Hot Video HD P6 Pantalla LED de 7 segmentos, Pantalla LED de 7 segmentos, Panel de visualización de
Solicitud:
Equipos electrónicos de oficina, electrodomésticos, etc., publicidad al aire libre LED, publicidad i
Nombre:
Pantalla LED de gasolina para estación de precios, pantalla LED smd pequeña de siete segmentos, 3 dí
Polaridad:
Ánodo común, cátodo común, CC&C.A
Temperatura de funcionamiento:
-35 ~ +85 ℃, -20 +85, -40 ~ 80 ℃, -45-80 ℃
Esperanza de vida:
100.000 horas, 10.000 horas, más de 50.000 horas
Voltaje:
DC12V, 90~120V/220~240V (según las necesidades del cliente)
color emisor:
Azul, amarillo, verde, blanco, rojo
Altura de los dígitos:
0,2 pulgadas, 1,5, 1,2, 0,38, 0,5
CHIP LED:
Epistar, InGan, AlGanlp
OEM:
Detalles de empaquetado:
Epe + Carton
Capacidad de la fuente:
50000 unidades/día
Resaltar:

3 digit alphanumeric LED display

,

ultra bright white LED display

,

14 segment temperature LED display

Descripción del producto

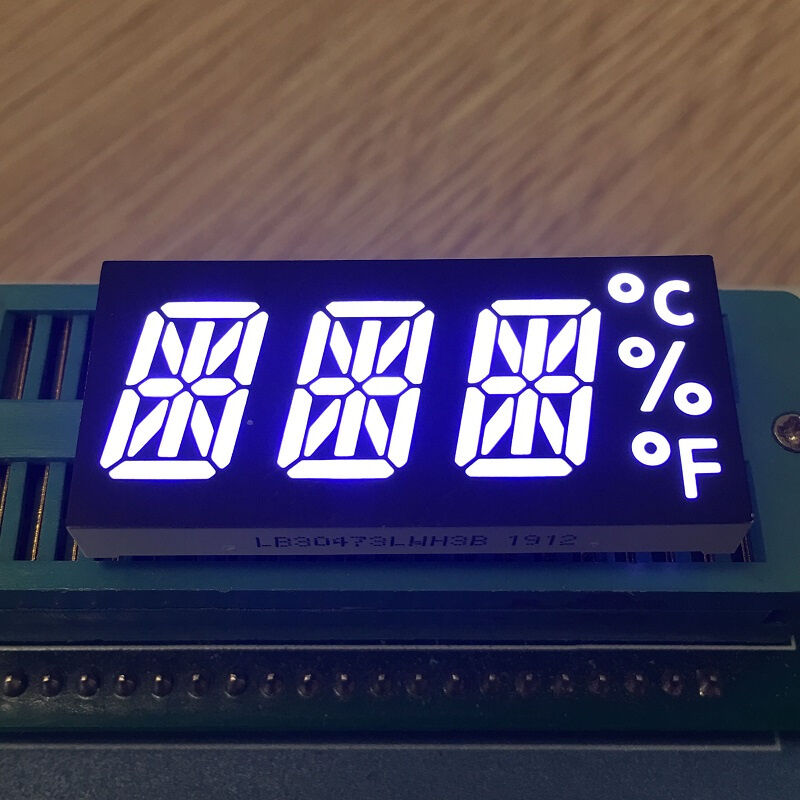

Ultra Bright White 14 Segment Alphanumeric LED Display
High-performance 3-digit alphanumeric LED display specifically designed for temperature monitoring applications with ultra bright white illumination.
Product Overview
Polarity: Common cathode
Color: Ultra Bright White
Luminous Intensity: 50-60mcd/dice
Forward Voltage: 1.8-2.2V/led
Available Colors: Red, blue, yellow green, pure green, white, amber, orange, and yellow
Key Features
  • High luminous intensity output with low forward voltage
  • Low power consumption and extremely low current
  • Evenly distributed luminous intensity across all segments
  • Industrial standard size for compatibility
  • Excellent reliability in bright ambient light conditions
  • Stable performance and long operational lifetime
  • RoHS/REACH compliant for environmental safety
Applications
  • Audio equipment and instrument panels
  • Home electronic appliances
  • Numeric displays and multimedia products
  • Digital indicators for temperature, humidity, and process monitoring
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Color Variant Specifications
Yellow Green (Code: J)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 569 574 nm
Amber/Yellow (Code: Y)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 585 595 nm
Orange (Code: F)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 600 605 nm
Super Bright Red (Code: R)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 50 60 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 630 635 nm
Ultra Bright Red (Code: UR)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 80 100 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 625 635 nm
Pure Green (Code: G)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 180 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 515 525 nm
Ultra Bright Blue (Code: BH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 460 465 nm
Ultra Bright White (Code: WH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm
Additional color variants including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.
Product Applications
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 0
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.
Manufacturer Information
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.
Certifications
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 1
Office and Factory Overview
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 2
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 3
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 4
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 5
Company Exhibitions
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 6
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 7
Shipping Services
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 8
Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature 9
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
