Display LED para scooter eléctrico
Created with Pixso.

White Custom 7 Segment LED Displays with IC for Electric Scooter

White Custom 7 Segment LED Displays with IC for Electric Scooter

Nombre De La Marca: LIGHT-BO
Número De Modelo: LB7540LWH1B-D
Cuota De Producción: 1000
Precio: Negotiate
Condiciones De Pago: T/T, Unión Occidental
Capacidad De Suministro: 20000 piezas/día
Información detallada
Lugar de origen:
Shenzhen, China
Certificación:
ISO9001&RoHS
fuente de alimentación:
Con batería
Resistencia al agua:
IP54
Uso:
Interior/Exterior
Garantía:
3 años
Corriente directa:
20mA
La dimensión exterior:
75*40*5MM
Detalles de empaquetado:
Epe+Carton
Capacidad de la fuente:
20000 piezas/día
Resaltar:

white custom 7 segment LED display

,

electric scooter LED display with IC

,

7 segment LED display for scooter

Descripción del producto

Ultra Bright White Custom 7 Segment LED Displays with IC for Electric Scooter

Product Description

Product Description Ultra-Bright White Custom 7-Segment LED Display with IC for Electric Scooters Custom designs for various applications
Your Part Number - Printing of your custom part number is available
Standard Part Number LB7540LWH1B-D -
Standard Color Ultra Bright White Options: Red, Blue, Pure Green, Yellow-Green, Orange, etc.
Standard Dimensions 75 * 40 * 5 mm Custom sizes supported
Polarity Common Anode Common Cathode is available
Lifespan 80,000 hours -
Free Samples Yes, supported Tooling samples require 15-20 working days
Sample Lead Time 5-7 working days -
Production Lead Time 15-20 working days Subject to order quantity
OEM/ODM Service Fully Supported Customization based on your drawings or concepts
Logo Printing Supported Based on your provided artwork
Minimum Order Quantity (MOQ) 1,000 PCS Initial order MOQ can be 100-500 PCS

Product Advantages:

  • High Contrast: White segments on black surface for clear readability
  • High Brightness: Delivers strong luminous intensity
  • Energy Efficient: Operates at low current
  • Reliable: Ensures stable and consistent performance
  • Uniform Display: Provides continuous and even segment illumination
  • Easy Integration: Simple PCB mounting process
  • Design Friendly: Fully compatible with integrated circuits (IC)
  • Environmentally Compliant: Meets RoHS standards

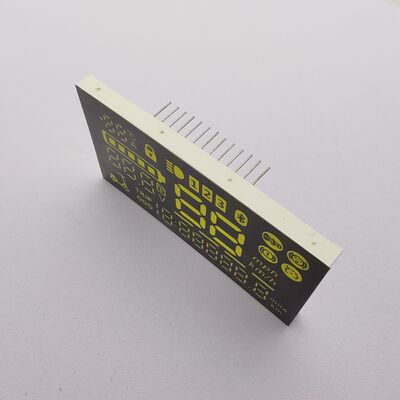

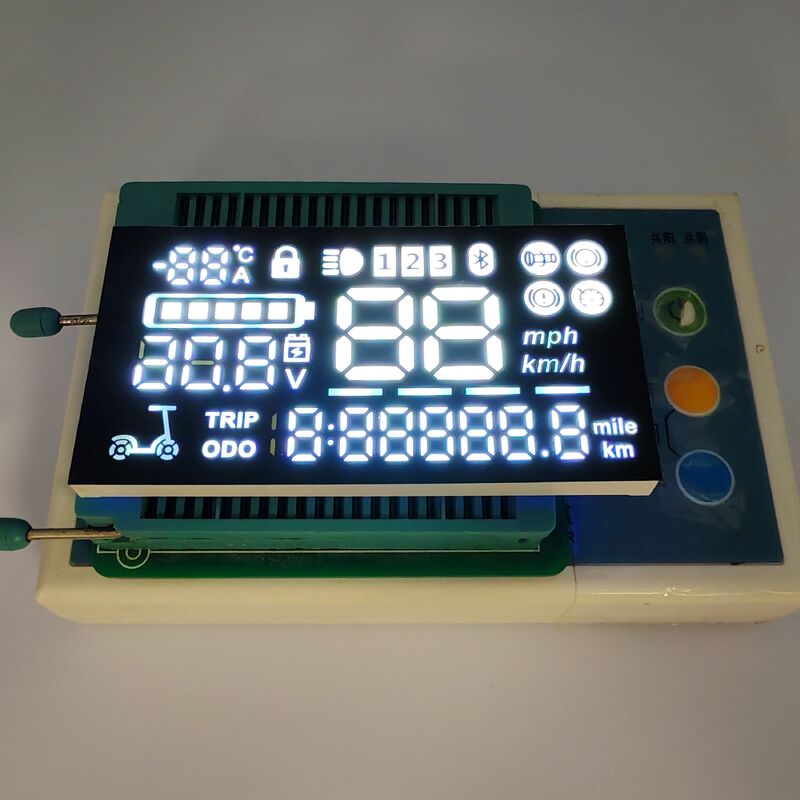

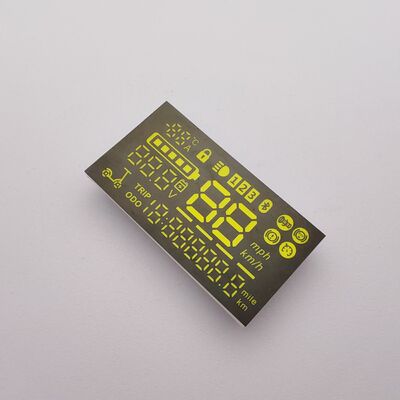

White Custom 7 Segment LED Displays with IC for Electric Scooter 0
White Custom 7 Segment LED Displays with IC for Electric Scooter 1

Product Parameters

Code: Yellow Green - J/JU. Elevate your displays with vivid hues that are tailored to meet your unique display requirements.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 569 574 nm

Code: Amber/Yellow - Y. Choose this warm, inviting color to craft displays that command attention and exude warmth.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 60 80 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 585 595 nm

Code: Orange - F. Make your display settings pop with our dynamic and eye-catching color choice.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 60 80 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 600 605 nm

Code: Super Bright Red - R. Revel in the vibrancy of this rich, captivating color, perfect for any striking display.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 630 635 nm

Code: Ultra Bright Red - UR. Ensure superior visibility with an intense and vivid red that enhances any display.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 80 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 625 635 nm

Color: Pure Green. Opt for a refreshing and clear choice that complements eco-friendly designs effortlessly.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 180 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 515 525 nm

Code: Ultra Bright Blue - BH. Infuse your display with a cool, bright hue, lending a contemporary aesthetic to any setting.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 460 465 nm

Code: Ultra Bright White - WH. Achieve unparalleled clarity and sophistication with this immaculate choice, elevating your displays.

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm

Absolute Maximum Ratings (Ta=25ºC): Uncover the robust performance parameters that define the remarkable capabilities of our LED display.

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.
LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.

Products Applications

White Custom 7 Segment LED Displays with IC for Electric Scooter 2 7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.

Certifications

White Custom 7 Segment LED Displays with IC for Electric Scooter 3

Office and Factory Overview

White Custom 7 Segment LED Displays with IC for Electric Scooter 4

White Custom 7 Segment LED Displays with IC for Electric Scooter 5 White Custom 7 Segment LED Displays with IC for Electric Scooter 6

White Custom 7 Segment LED Displays with IC for Electric Scooter 7

Company Exhibitions

White Custom 7 Segment LED Displays with IC for Electric Scooter 8

White Custom 7 Segment LED Displays with IC for Electric Scooter 9

Various transportation methods

White Custom 7 Segment LED Displays with IC for Electric Scooter 10 White Custom 7 Segment LED Displays with IC for Electric Scooter 11

FAQ

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 IWhat will be the samples lead time for customized products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
